Base station access controller
- ModelRV600-A01D
- Type
- Other
l Features: RV600-A01D is a specialized research and development equipment for outdoor base station, machine room, entrance guard management of warehouse. Considering the base station has the characteristics of dispersing wide, most distrib
l Features:
RV600-A01D is a specialized research and development equipment for outdoor base station, machine room, entrance guard management of warehouse. Considering the base station has the characteristics of dispersing wide, most distributing in desolate place , various equipments interference and inconvenience .Therefore the stability, rapid response, precision and reliability, the equipment is more useful than general civil entrance guard. The indexes of EMC/EMI are more than two times than national standard and professional standard. Also it has the following features:
Ø Communication protocol are compatible with Emerson, ZTE, H3C and so on industry, with strong compatibility;
Ø Support multi-mode of door-open: card-insertion, long-distance control, indoor control;
Ø Support RS485/RS422/RS232 or TCP/IP network;
Ø The upper limit of user registration: 1700;
Ø Without card reader, support connect with two Wiegand card reader;
Ø environment monitoring record: magnetic door, and infrared, etc.;
Ø Support different electromagnetic locks: magnetic lock, electric bolt, pulse lock, etc.;
Ø Detailed record: keep newest record max 6144(can be expanded to above 20,000);
Ø With Anti-jamming protection for both input and output;
Ø Oiled treatment of the surface: mold-proof and anti-dampness;
Ø Working temperature: -10℃-55℃;
Ø Working humidity: <98%;
Ø Without keyboard setting function or LED display;
Ø Application: widely used in electric power unmanned substations, outdoor base station, machine room, warehouse, and other important place.
l Parameters:
l Application:
RV600-A01D is a specialized research and development equipment for outdoor base station, machine room, entrance guard management of warehouse. Considering the base station has the characteristics of dispersing wide, most distributing in desolate place , various equipments interference and inconvenience .Therefore the stability, rapid response, precision and reliability, the equipment is more useful than general civil entrance guard. The indexes of EMC/EMI are more than two times than national standard and professional standard. Also it has the following features:
Ø Communication protocol are compatible with Emerson, ZTE, H3C and so on industry, with strong compatibility;
Ø Support multi-mode of door-open: card-insertion, long-distance control, indoor control;
Ø Support RS485/RS422/RS232 or TCP/IP network;
Ø The upper limit of user registration: 1700;
Ø Without card reader, support connect with two Wiegand card reader;
Ø environment monitoring record: magnetic door, and infrared, etc.;
Ø Support different electromagnetic locks: magnetic lock, electric bolt, pulse lock, etc.;
Ø Detailed record: keep newest record max 6144(can be expanded to above 20,000);
Ø With Anti-jamming protection for both input and output;
Ø Oiled treatment of the surface: mold-proof and anti-dampness;
Ø Working temperature: -10℃-55℃;
Ø Working humidity: <98%;
Ø Without keyboard setting function or LED display;
Ø Application: widely used in electric power unmanned substations, outdoor base station, machine room, warehouse, and other important place.
l Parameters:
| Model | RV600-A01D |
| Number of doors | Suitable for one door access control system |
| Number of readers | Can be connected 2 outside standard Wiegand26 reader |
| Number of users | Maximum 1700 card holders; |
| Stored Record Number | Maximum 6100 latest storage records; |
| Main Material | ABS |
| Color | Black |
| Surface Treatment | Spray paint |
| EMC/EMI |
Rapid pulse group of resistance to flexibility ±4kV, 9kHz, power and all input / output port; Noise immunity ± 4 kV, power and all input/output port; Electrostatic put the circuit reactance flexibility ± 6 kV contact discharge, ± 8 kV air discharge, all exposed technology compo nents and terminals |
| Communication Format | TCP/IP、RS485 、 RS422 , the factory default for RS485 |
| Baud Rate | 9600～115200BPS |
| Operating Temp | -20℃~60℃ |
| Suitable Humidity | 5%~90%(non-condensing) |
| Working Voltage | DC12V±10% |
| Consumption Power | 1W MAX |
| Size (mm) | 114(W) x75(D) x22(H) |
| weight | 0.28Kg |

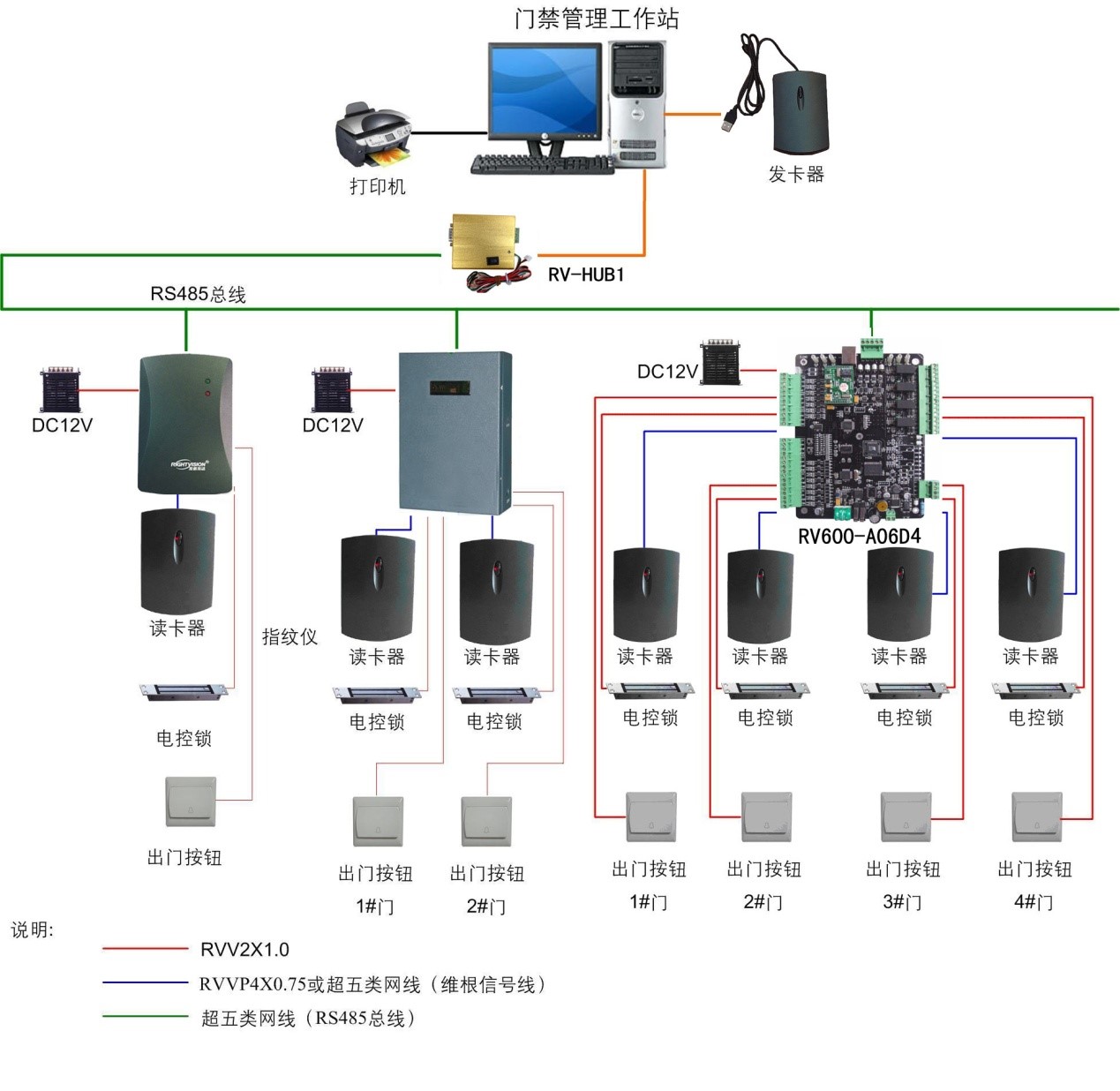

l Application:
