Ethernet 2-door Access Controller
- ModelRV600-A01D2
- Type
- Other
RV600-A01D2 is a specialized research and development equipment for each other cascade or interlock AB access door management. Considering this kind of door access demanding higher security , so it has the individuality demand on personnel
l Features:
RV600-A01D2 is a specialized research and development equipment for each other cascade or interlock AB access door management. Considering this kind of door access demanding higher security , so it has the individuality demand on personnel access authentication, the work flowing judgment, special circumstance processing (press the button to released, press the button to locked), , so it need rich access controller function and strong user-defined ability . Also it has the following features:
Ø Communication protocol are compatible with Emerson, ZTE, H3C and so on industry, with strong compatibility;
Ø Suitable for two door access control system
Ø Can be connected 4 outside standard Wiegand26 reader;
Ø Support multi-mode of door-open: card-insertion, long-distance control, indoor control;
Ø Size: Support 8,000 users cards and 30,000 entry records even offline;
Ø .Communication Interface: Standard TCP/IP network, 10M Ethernet;
Ø Communication Rate:12,000~115,200BPS;
Ø Standby interface: Standard RS232, RS485, RS422 output, also with SMS interface;
Ø Support add and dele card user by local button (can be hid when regular working);
Ø Working temperature：-10℃-55℃; working humidity：98%;
Ø Oiled treatment of the surface ensures mold-proof and anti-dampness;
Ø With iron box packing, easy for installation.
l Parameters:
l Application
RV600-A01D2 is a specialized research and development equipment for each other cascade or interlock AB access door management. Considering this kind of door access demanding higher security , so it has the individuality demand on personnel access authentication, the work flowing judgment, special circumstance processing (press the button to released, press the button to locked), , so it need rich access controller function and strong user-defined ability . Also it has the following features:
Ø Communication protocol are compatible with Emerson, ZTE, H3C and so on industry, with strong compatibility;
Ø Suitable for two door access control system
Ø Can be connected 4 outside standard Wiegand26 reader;
Ø Support multi-mode of door-open: card-insertion, long-distance control, indoor control;
Ø Size: Support 8,000 users cards and 30,000 entry records even offline;
Ø .Communication Interface: Standard TCP/IP network, 10M Ethernet;
Ø Communication Rate:12,000~115,200BPS;
Ø Standby interface: Standard RS232, RS485, RS422 output, also with SMS interface;
Ø Support add and dele card user by local button (can be hid when regular working);
Ø Working temperature：-10℃-55℃; working humidity：98%;
Ø Oiled treatment of the surface ensures mold-proof and anti-dampness;
Ø With iron box packing, easy for installation.
l Parameters:
| Model | RV600-A01D2 |
| Number of doors | Suitable for two door access control system |
| Number of readers | Can be connected 4 outside standard Wiegand26 reader |
| Number of users | Maximum 8000 card holders; |
| Stored Record Number | Maximum 30000 latest storage records; |
| Reader number | External a standard W26BIT card reader |
| EMC/EMI |
Rapid pulse group of resistance to flexibility ±4kV, 9kHz, power and all input / output port; Noise immunity ± 4 kV, power and all input/output port; Electrostatic put the circuit reactance flexibility ± 6 kV contact discharge, ± 8 kV air discharge, all exposed technology compo nents and terminals |
| Communication Format | TCP/IP、RS485 、 RS422 , the factory default for RS485 |
| Baud Rate | 12000～115200BPS |
| Operating Temp | -20℃~60℃ |
| Suitable Humidity | 5%~90%(non-condensing) |
| Working Voltage | DC12V±10% |
| Consumption Power | 1W MAX |
| Size (mm) | L200 x W150 x H19.5 |
| weight | 0.51Kg(without box) |

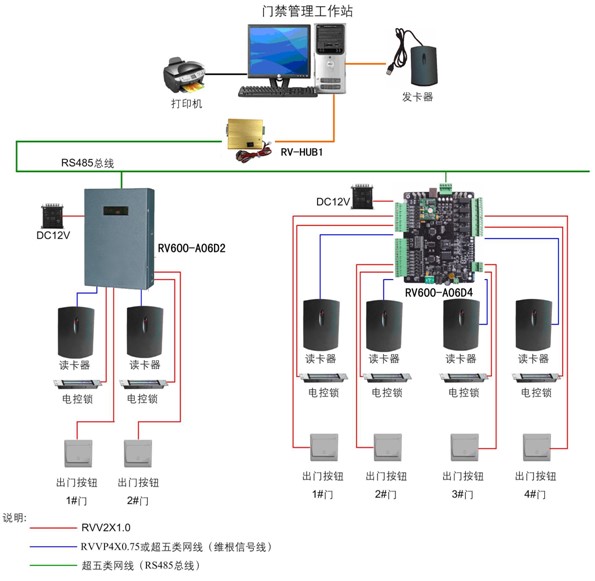

l Application
