Double Door Magnetic Lock(560KG)
- ModelRV900LC-CM02
- TypeWooden door , Glass door ,Metal door , Fireproof door
- Other
Ø Collinear Load Test 280kg x2,600pounds x2； Ø Dual Voltage 12 or 24 VDC(optional)； Ø The Standard Voltage is 12VDC when Finished； Ø MOV Provides Reverse Current Protection； Ø Anti-Residual Magnetism Designed；
l Features:
Ø Collinear Load Test 280kg x2,600pounds x2；
Ø Dual Voltage 12 or 24 VDC(optional)；
Ø The Standard Voltage is 12VDC when Finished；
Ø MOV Provides Reverse Current Protection；
Ø Anti-Residual Magnetism Designed；
Ø High Strength Material, Anodized Aluminum Housing；
Ø Design without Mechanical Failure；
Ø Increase the holding Force, Dual Insulative Housing；
Ø CE Certificate by European Union, MA Certificate by China Public Security Office.
l Parameters
l Optional Bracket

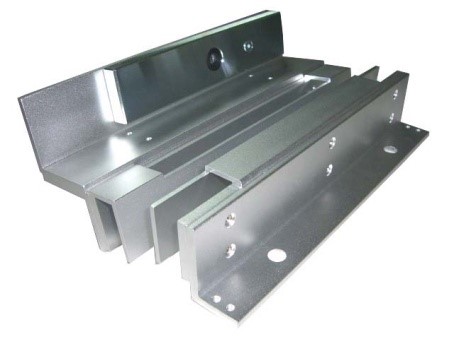

280LZ type

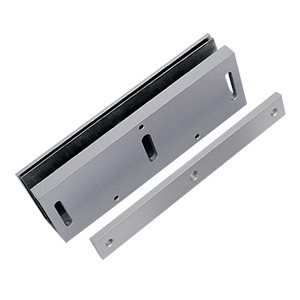

280U type

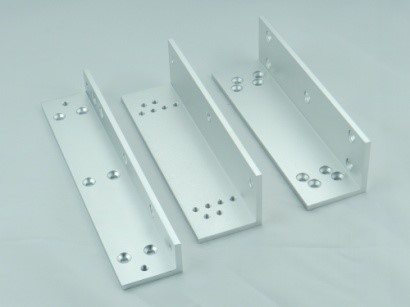

280L type
Ø Collinear Load Test 280kg x2,600pounds x2；
Ø Dual Voltage 12 or 24 VDC(optional)；
Ø The Standard Voltage is 12VDC when Finished；
Ø MOV Provides Reverse Current Protection；
Ø Anti-Residual Magnetism Designed；
Ø High Strength Material, Anodized Aluminum Housing；
Ø Design without Mechanical Failure；
Ø Increase the holding Force, Dual Insulative Housing；
Ø CE Certificate by European Union, MA Certificate by China Public Security Office.
l Parameters
| Ø Type | Ø RV900LC-CM02 |
| Ø Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Ø Finishes for Shell | Anodized aluminum |
| Ø Holding Force | 280kg x2,600pounds x2 |
| Ø Voltage | 12/24VDC+10% |
| Ø Current Draw | 12V/500mA x2, 24V/250mA x2, |
| Ø Consumption power | 3.3W/5.5W |
| Ø Surface Temp | ≤+20℃ |
| Ø Operating Temp | -10～+55℃(14-131F) |
| Ø Suitable Humidity | 0~90%(non-condensing) |
| Ø Optional Bracket | 280UL 280L 280ZL |
| Ø Finishes for Magnetic | Zinc |
| Ø Finishes for Armature | Zinc |
| Ø Size |
Lock Size: 500 mm (L) x 47 mm (W) x 27 mm (H) Armature plate : 180 mm (L) X38mm (W) X12.7 mm (H) |
| Ø Weight | 4kg |
l Optional Bracket
280LZ type
280U type
280L type
