Intelligent Lock with Network Access Control(RV900LC-A12EM)
- ModelRV900LC-A12EM /RV900LC-A12IC /RV900LC-A13EM /RV900LC-A13IC
- Type
- Other
Main material and finish: Pocked argent powder coated zinc housing and lockpin; With internal door access controller and EM card reader, integrated electric lock, RF card reader, access controller, door switch, all in one device.
l Features:
Ø Main material and finish: Pocked argent powder coated zinc housing and lockpin;
Ø With internal door access controller and EM card reader, integrated electric lock, RF card reader, access controller, door switch, all in one device.
Ø RF frequency: 125KHz (EM card reader);
Ø Support network and standalone working, open door by remote control,RFID card (EM card or Mifare card), key etc.
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 4-6 seconds automatically;
Ø The working voltage range is from DC12V to DC18V, max working current is 400mA.
Ø User register: max issue 256 users and keep 2528 newly records (Can be expanding).
Ø With RS422/RS485 communication output for online work, relevant software with strong access control function;
Ø Support open door method: by reading card, remote control, mechanical key.
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: all kinds of cabinet,store ark, suitable for network door access control system.
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: Wooden Door, Metal Door.
l Parameters
l Application
Ø Main material and finish: Pocked argent powder coated zinc housing and lockpin;
Ø With internal door access controller and EM card reader, integrated electric lock, RF card reader, access controller, door switch, all in one device.
Ø RF frequency: 125KHz (EM card reader);
Ø Support network and standalone working, open door by remote control,RFID card (EM card or Mifare card), key etc.
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 4-6 seconds automatically;
Ø The working voltage range is from DC12V to DC18V, max working current is 400mA.
Ø User register: max issue 256 users and keep 2528 newly records (Can be expanding).
Ø With RS422/RS485 communication output for online work, relevant software with strong access control function;
Ø Support open door method: by reading card, remote control, mechanical key.
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: all kinds of cabinet,store ark, suitable for network door access control system.
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: Wooden Door, Metal Door.
l Parameters
| Type | RV900LC-A12EM | RV900LC-A12IC | RV900LC-A13EM | RV900LC-A13IC |
| RFID Card | EM | Mifare 1/cpu | EM | Mifare 1/cpu |
| Effective Distance | 40-80mm | 10-40mm | 40-80mm | 10-40mm |
| RF Frequency | 125KHz | 13.56MHz | 125KHz | 13.56MHz |
| Communication Output | RS485 | RS422 | ||
| Transmission Distance | 1200m | 1200m | ||
| Number of users | Maximum 256 card holders; | |||
| Stored Record Number | Maximum 2528 latest storage records; | |||
| Main Material | Pocked black powder coated zinc housing, zinc profile cylinder | |||
| Color | Argent | |||
| Surface Treatment | Polish/ Passivation / Powder spraying | |||
| Surge Parameters | The power cord common mode 1 kV, differential mode 2 kV, signal lines common mode 1 kV | |||
| Lightning Protection Level | power supply prevents thunder: dc power mouth meet surge test level of the differential mode 1 kV, common mode 2 kV (criterion B) | |||
| Waterproof Level | IP55 | |||
| Operating Temp | -20℃~60℃ | |||
| Suitable Humidity | 5%~90%(non-condensing) | |||
| Working Voltage | DC12V±10% | |||
| Consumption Power | 6W MAX | |||

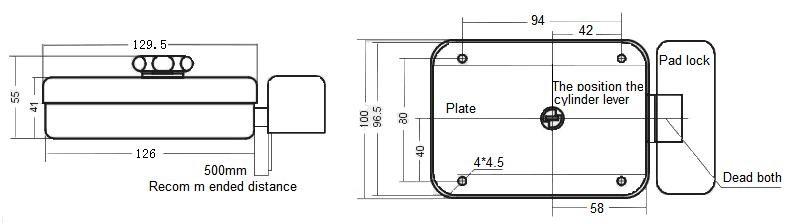

| Size (mm) | 130 (L)X 100（W）X 55(H)±5% | |||
| weight | 0.97Kg ±5% | |||
l Application
