Safe Simple Electric Bolt (RV900LC-CE02)
- ModelRV900LC-CE02
- Type
- Other
Low Temperature, safe & Durable; Low Power, Environmental Protection; Special photoelectricity control, three steps current application; Long Life with 500000 Operations; MOV Provides Reverse Current Protection;
l Features:
Ø Low Temperature, safe & Durable;
Ø Low Power, Environmental Protection;
Ø Special photoelectricity control, three steps current application;
Ø Long Life with 500000 Operations;
Ø MOV Provides Reverse Current Protection;
Ø Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt;
Ø Double protection for loading current;
Ø Auto-relock if no Action within 5 secs.;
Ø Photoelectricity Control, Low Temperature，
Ø The Low Current is Changed immediately;
Ø When door frame doesn’t coincide with door leaf ,door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature;
Ø The Photoelectricity Control Technology, prevent the mechanical defect.
l Parameters
l Optional Bracket
02A (the accessories of the glass doors don’t have frames)
02B(the accessories of the glass doors have frames)
Ø Low Temperature, safe & Durable;
Ø Low Power, Environmental Protection;
Ø Special photoelectricity control, three steps current application;
Ø Long Life with 500000 Operations;
Ø MOV Provides Reverse Current Protection;
Ø Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt;
Ø Double protection for loading current;
Ø Auto-relock if no Action within 5 secs.;
Ø Photoelectricity Control, Low Temperature，
Ø The Low Current is Changed immediately;
Ø When door frame doesn’t coincide with door leaf ,door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature;
Ø The Photoelectricity Control Technology, prevent the mechanical defect.
l Parameters
| Ø Type | Ø RV900LC-CE02 |
| Ø Suitable For | Ø Wooden Door, Glass Door, Metal Door |
| Ø Fail Safe | Ø Locked when energized. |
| Ø Bolt | Ø 16mmDIA,stainless steel 16mm throw |
| Ø Induction Distance | Ø 8mm |
| Ø Solid Bolt | Ø polishing housing, 560Kg Holding Force |
| Ø Surface Temp | Ø Low Temperature |
| Ø Face place material | Ø High Aluminum, Garrulous Line Finished |
| Ø Special Designed | Ø Tested to 500000 cycles |
| Ø Voltage | 12VDC+10% |
| Ø Current Draw | Standby Current: 100mA, Start Current: 900mA |
| Ø Surface Temp | ≤+20℃ |
| Ø Operating Temp | -10～+55℃(14-131F) |
| Ø Suitable Humidity | 0~90%(non-condensing) |
| Ø Optional Bracket | 02A 02B |
| Ø Size |
Ø Face Plate:200 (L) x 34 (W x 42 (H) mm Ø Strike: 90(L)x25(W)x2(H)mm |
| Ø Weight | Ø 0.72kg |
l Optional Bracket

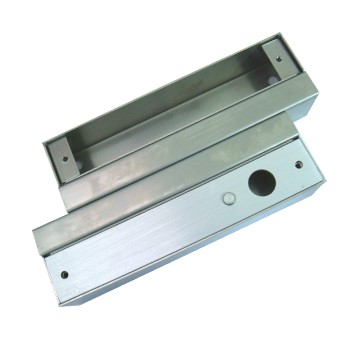

02A (the accessories of the glass doors don’t have frames)

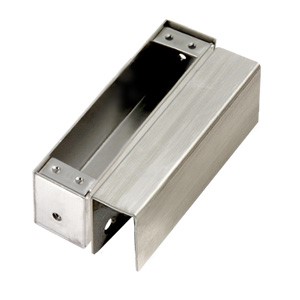

02B(the accessories of the glass doors have frames)
