Intelligent Lock
- ModelRV900LC-L13
- Type
- Other
Specially used for Access Controller system; Fits for electrical control, key or hand operation; Low noise, long life, power save, convenient installation; No necessary to identify installation directions; Universal for left, right, in-
l Features:
Ø Specially used for Access Controller system;
Ø Fits for electrical control, key or hand operation;
Ø Low noise, long life, power save, convenient installation;
Ø No necessary to identify installation directions;
Ø Universal for left, right, in-swing and out-swing doors;
Ø It can open the door by remote control and fingerprint
Ø High-Temperature Painted, Duable and Beautiful Article;
Ø Low Temperature, safe & Durable;
Ø MOV Provides Reverse Current Protection;
Ø Double protection for loading current;
l Parameters:
l Application
Ø Specially used for Access Controller system;
Ø Fits for electrical control, key or hand operation;
Ø Low noise, long life, power save, convenient installation;
Ø No necessary to identify installation directions;
Ø Universal for left, right, in-swing and out-swing doors;
Ø It can open the door by remote control and fingerprint
Ø High-Temperature Painted, Duable and Beautiful Article;
Ø Low Temperature, safe & Durable;
Ø MOV Provides Reverse Current Protection;
Ø Double protection for loading current;
l Parameters:
| Ø Type | Ø RV900LC-L13 |
| Ø Suitable For | Wooden Door, Metal Door |
| Ø Strike Structure | Zinc |
| Ø Limited warranty | one year or 350,000 times |
| Ø Function | Built-out MOV |
| Ø Opening Mode | 90 Degree Swinging Door |
| Ø Voltage | 12VDC+10% |
| Ø Consumption Power | <400mA |
| Ø Operating Temp | -40～+55℃ |
| Ø Suitable Humidity | 0~90%(non-condensing) |

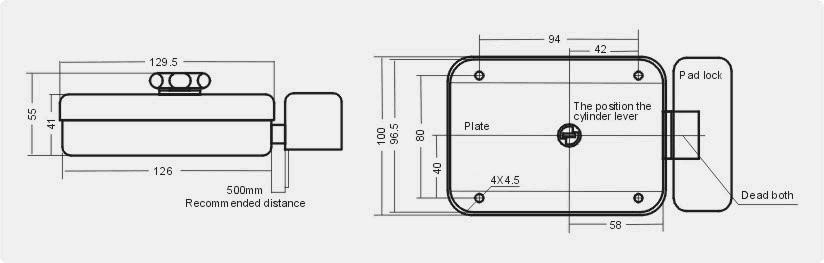

| Ø Lock Size | 130 (L)X 100（W）X 55(H)mm±5% |
| Ø Weight | 0.94Kg ±5％ |
l Application
