Intelligent Lock with EM Card Reader-RV900LC-R12EM
- ModelRV900LC-R12EM /RV900LC-R12IC /RV900LC-R13EM /RV900LC-R13IC
- Type
- Other
Main material and finish: Pocked argent powder coated zinc housing and lockpin; With internal EM card reader; RF frequency: 125KHz(EM); Standard DC12V power supply;
l Features:
Ø Main material and finish: Pocked argent powder coated zinc housing and lockpin;
Ø With internal EM card reader;
Ø RF frequency: 125KHz(EM);
Ø Standard DC12V power supply;
Ø With standard Wiegand 26bit output (can set as other Wiegand format);
Ø With voice and light indicating work state, OC output;
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 4-6 seconds automatically;
Ø It's equipped with mechanical lock core and key;
Ø Support many modes of opening doors such as by reading RFID card (EM card) or by mechanical key;
Ø Suitable for door access controller, able to integrate with access controller to make whole access control system;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: Wooden Door, Metal Door.
l Parameters
l Application
Ø Main material and finish: Pocked argent powder coated zinc housing and lockpin;
Ø With internal EM card reader;
Ø RF frequency: 125KHz(EM);
Ø Standard DC12V power supply;
Ø With standard Wiegand 26bit output (can set as other Wiegand format);
Ø With voice and light indicating work state, OC output;
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 4-6 seconds automatically;
Ø It's equipped with mechanical lock core and key;
Ø Support many modes of opening doors such as by reading RFID card (EM card) or by mechanical key;
Ø Suitable for door access controller, able to integrate with access controller to make whole access control system;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: Wooden Door, Metal Door.
l Parameters
| Type | RV900LC-R12EM | RV900LC-R12IC | RV900LC-R13EM | RV900LC-R13IC |
| RFID Card | EM | Mifare 1/cpu | EM | Mifare 1/cpu |
| Effective Distance | 40-80mm | 10-40mm | 40-80mm | 10-40mm |
| RF Frequency | 125KHz | 13.56MHz | 125KHz | 13.56MHz |
| Communication Output | Standard Wiegand 26bit interface (w32/w34/w44 optional) | RS485 | ||
| Transmission Distance | 100－120m | 1200m | ||
| Main Material | Pocked black powder coated zinc housing, zinc profile cylinder | |||
| Color | Argent | |||
| Surface Treatment | Polish/ Passivation / Powder spraying | |||
| Surge Parameters | The power cord common mode 1 kV, differential mode 2 kV, signal lines common mode 1 kV | |||
| Lightning Protection Level | power supply prevents thunder: dc power mouth meet surge test level of the differential mode 1 kV, common mode 2 kV (criterion B) | |||
| Waterproof Level | IP55 | |||
| Operating Temp | -20℃~60℃ | |||
| Suitable Humidity | 5%~90%(non-condensing) | |||
| Working Voltage | DC12V±10% | |||
| Consumption Power | 5-7W MAX | |||

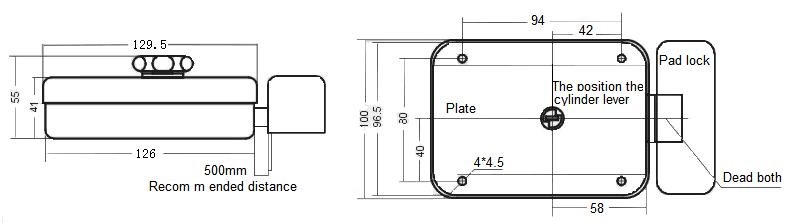

| Size (mm) | 130 (L)X 100（W）X 55(H)±5% | |||
| weight | 0.97Kg ±5% | |||
