Electric Rod Contral Lock-RV900LC-L20
- ModelRV900LC-L20
- Type
- Other
Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod; Working Voltage: 12 VDC; Waterproof Level: IP55
l Features:
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø Working Voltage: 12 VDC;
Ø Waterproof Level: IP55
Ø Low power consumption, peak current is not more than 0.5 A;
Ø According with "GA 73-1994 machine anti-theft lock " national standards;
Ø According with "GB/T10125-1997 artificial atmosphere corrosion test salt fog test" national standards;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø It's equipped with mechanical lock core and key;
Ø Application places: all kinds of cabinet, outdoor ark, , store ark.
l Parameters
l Application

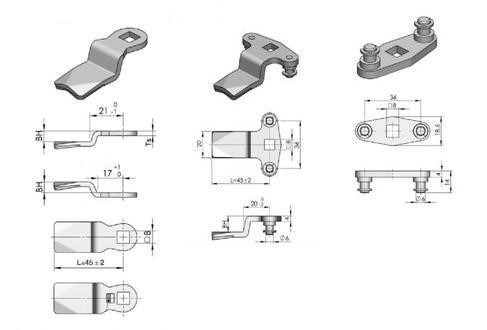

l Optional Accessories:
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø Working Voltage: 12 VDC;
Ø Waterproof Level: IP55
Ø Low power consumption, peak current is not more than 0.5 A;
Ø According with "GA 73-1994 machine anti-theft lock " national standards;
Ø According with "GB/T10125-1997 artificial atmosphere corrosion test salt fog test" national standards;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø It's equipped with mechanical lock core and key;
Ø Application places: all kinds of cabinet, outdoor ark, , store ark.
l Parameters
| Type | RV900LC-L20 |
| Main material and finish | Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod |
| Surface treatment | Polish/ Passivation / Powder spraying |
| LED and Induction Coil | With EM card induction coil (optional) |
| Working Voltage | DC12V±10% |
| Consumption Power | 6W MAX |
| Operating Temp | -10℃～+65℃ |
| Suitable Humidity | 5%~90%(non-condensing) |
| Waterproof Level | IP55 |

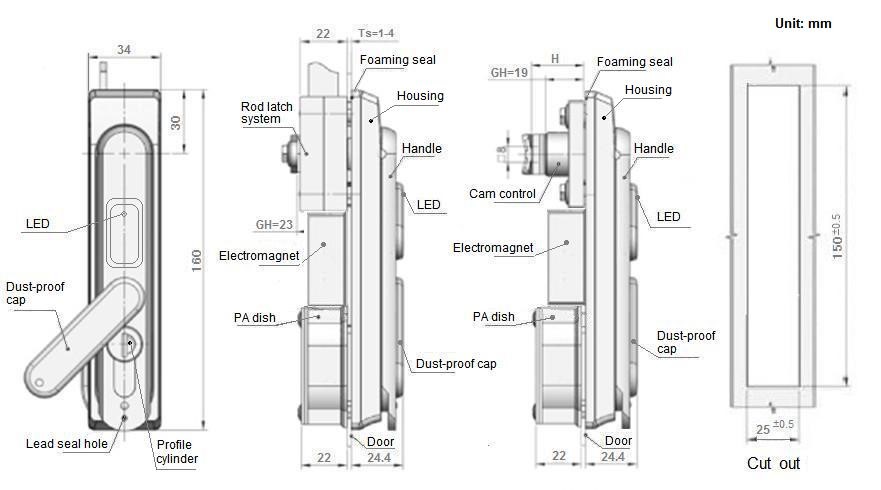

| Size (mm) | 160(W) x34(D) x47(H) |
| weight |
