Electric Plane Cabinet Lock-RV900LC-L04
- ModelRV900LC-L04
- Type
- Other
Series intelligent access control cabinet lock is the newest patented product of our company, based on the normal cabinet lock, reading card cabinet lock to develop this intelligent cabinet lock.
l Features:
Series intelligent access control cabinet lock is the newest patented product of our company, based on the normal cabinet lock, reading card cabinet lock to develop this intelligent cabinet lock. It integrates the card reader, access controller with the cabinet lock, make it all in one, easy to install and test, it also has the special security specification of the proximity card technology and RS485/422 network communicating to make the In & Out control management system. it has network security and monitor function, usually used in the IDC cabinet, NONE People on duty integration base station, database room etc. area that required monitoring function. It uses electronic intelligent to control, proximity smart card to open lock, with multi functions, safety and reliable. The special function is: easy to install, easy to update, having keys and manual to open is available, Grade III lighting protection, SMT technologies etc
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø Working Voltage: 12 VDC;
Ø Waterproof Level: IP55
Ø Low power consumption, peak current is not more than 0.5 A;
Ø According with "GA 73-1994 machine anti-theft lock " national standards;
Ø According with "GB/T10125-1997 artificial atmosphere corrosion test salt fog test" national standards;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø It's equipped with mechanical lock core and key;
Ø Application places: all kinds of cabinet, outdoor ark, , store ark.
l Parameters
l Application
l System configuration
Connecting Terminal Defines
Series intelligent access control cabinet lock is the newest patented product of our company, based on the normal cabinet lock, reading card cabinet lock to develop this intelligent cabinet lock. It integrates the card reader, access controller with the cabinet lock, make it all in one, easy to install and test, it also has the special security specification of the proximity card technology and RS485/422 network communicating to make the In & Out control management system. it has network security and monitor function, usually used in the IDC cabinet, NONE People on duty integration base station, database room etc. area that required monitoring function. It uses electronic intelligent to control, proximity smart card to open lock, with multi functions, safety and reliable. The special function is: easy to install, easy to update, having keys and manual to open is available, Grade III lighting protection, SMT technologies etc
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø Working Voltage: 12 VDC;
Ø Waterproof Level: IP55
Ø Low power consumption, peak current is not more than 0.5 A;
Ø According with "GA 73-1994 machine anti-theft lock " national standards;
Ø According with "GB/T10125-1997 artificial atmosphere corrosion test salt fog test" national standards;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø It's equipped with mechanical lock core and key;
Ø Application places: all kinds of cabinet, outdoor ark, , store ark.
l Parameters
| Type | RV900LC-L04 |

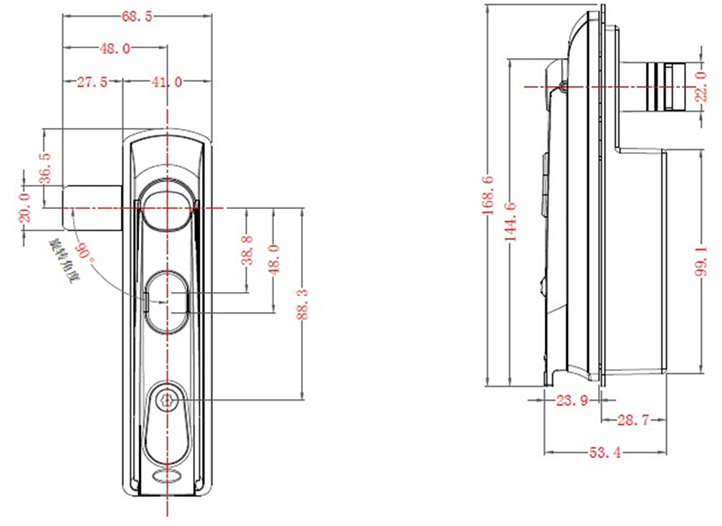

| Size (mm) | 169MM（L）X 41MM（W）X 53MM（H）±5％ |
| Color | Black |
| Net weight | 800g±10% |
| Waterproof Level | IP55 |
| Power supply |
Rated working voltage：12VDC Input voltage range：10.8VDC－13.2VDC Working currency：Working currency 150mA，dynamic card swiping less than 500mA Min power supply：1000mA／12V DC input |
| Temperature | Working: -10℃～ +50℃ |
| Non- Working: -20～60℃ | |
| Humidity | Working 20%～90%RH |
| Non- Working: 20～90％ | |
| Working status | green light on when legal door open, red light on when illegal door open |
l Application
l System configuration
Connecting Terminal Defines
| Lead Color | function definition | |
| 1 | brown | UNLOCK |
| 2 | Grey | ON_KEY |
| 3 | red | +12V |
| 4 | brown | GND |
| 5 | Yellow | GND |
| 6 | purple | D.SW |
| 7 | orange | D.SW_OC |
| 8 | Black | GND |
| 9 | Green | NC |
| 10 | White | NC |
