Electric Plane Cabinet Lock-RV900LC-M03
- ModelRV900LC-M03Series
- Type
- Other
RV900LC-M03Series intelligent access control cabinet lock is the newest patented product of our company, based on the normal cabinet lock, reading card cabinet lock to develop this intelligent cabinet lock. It integrates the card reader, acc
l Features:
ntegrated Access Control Cabinet Lock with Keypad
RV900LC-M03Series intelligent access control cabinet lock is the newest patented product of our company, based on the normal cabinet lock, reading card cabinet lock to develop this intelligent cabinet lock. It integrates the card reader, access controller with the cabinet lock, make it all in one, easy to install and test, it also has the special security specification of the proximity card technology and RS485/422 network communicating to make the In & Out control management system. it has network security and monitor function, usually used in the IDC cabinet, NONE People on duty integration base station, database room etc. area that required monitoring function. It uses electronic intelligent to control, proximity smart card to open lock, with multi functions, safety and reliable. The special function is: easy to install, easy to update, having keys and manual to open is available, Grade III lighting protection, SMT technologies etc
l Parameters
l Application
l System configuration
Connecting Terminal Defines
1 Power supply and Communicate Cables
2 Door sensor input connection
3 Open Lock Input Connection
ntegrated Access Control Cabinet Lock with Keypad
RV900LC-M03Series intelligent access control cabinet lock is the newest patented product of our company, based on the normal cabinet lock, reading card cabinet lock to develop this intelligent cabinet lock. It integrates the card reader, access controller with the cabinet lock, make it all in one, easy to install and test, it also has the special security specification of the proximity card technology and RS485/422 network communicating to make the In & Out control management system. it has network security and monitor function, usually used in the IDC cabinet, NONE People on duty integration base station, database room etc. area that required monitoring function. It uses electronic intelligent to control, proximity smart card to open lock, with multi functions, safety and reliable. The special function is: easy to install, easy to update, having keys and manual to open is available, Grade III lighting protection, SMT technologies etc
l Parameters

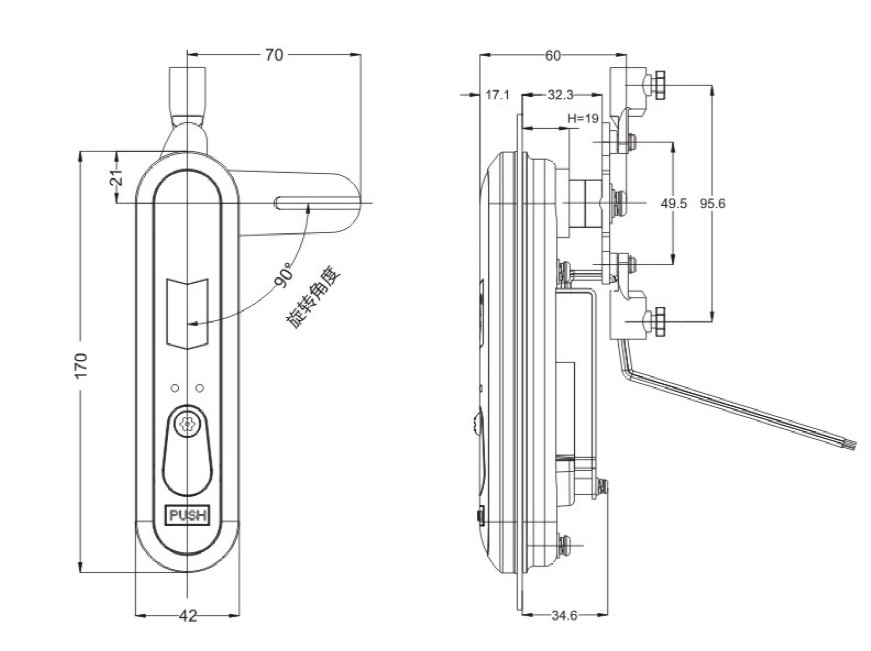

| Size | 170MM（L）X 42MM（W）X 60MM（h）±5％ |
| Color | Black |
| Net weight | 900g±10% |
| Power supply |
Rated working voltage：12VDC Input voltage range：10.8VDC－13.2VDC Working currency：Working currency 150mA，dynamic card swiping less than 500mA Min power supply：1000mA／12V DC input |
| Temperature | Working: -10℃～ +50℃ |
| Non- Working: -20～60℃ | |
| Humidity | Working 20%～90%RH |
| Non- Working: 20～90％ | |
| Working status | green light on when legal door open, red light on when illegal door open |
| Card-supporting | Support different kinds of EM card, better for Key fob cards |
| RF frequency | 125KHZ±5% or 13.56Mhz |
| Card read distance | 10～30mm |
| Lock open way | door open by electronic lock or key，lock when door close |
| Communication way | RS485，9600bit/s(default) |
| Noise Immunity | ESD： contact discharge:±6KV air discharge:±8kV |
l Application
l System configuration
Connecting Terminal Defines
1 Power supply and Communicate Cables
| 1st | red | +12V | DC12V power supply |
| 2nd | black | GND | |
| 3rd | Yellow | ARM | Alarm output (OC output) |
| 4th | Green | RS485A+ | RS485 communicate port |
| 5th | White | RS485B- |
2 Door sensor input connection
| 1st | purple | DOOR.SW | External “door sensor” input port |
| 2nd | Black | GND |
3 Open Lock Input Connection
| 1st | brown | L+ | Lock open drive input port (DC12V drive) |
| 2nd | Grey | L- |
