Standard Intelligent Lock with EM Card Reader-RV900LC-R20EM
- ModelRV900LC-R20EM /RV900LC-R20IC /RV900LC-R21EM /RV900LC-R21IC
- Type
- Other
Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
l Features:
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø With internal EM card reader;
Ø RF frequency: 125KHz(EM);
Ø Standard DC12V power supply;
Ø With standard Wiegand 26bit output (can set as other Wiegand format);
Ø With voice and light indicating work state, OC output;
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 5 seconds automatically;
Ø It's equipped with mechanical lock core and key;
Ø Support many modes of opening doors such as by reading RFID card (EM card) or by mechanical key;
Ø Suitable for door access controller, able to integrate with access controller to make whole access control system;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: all kinds of cabinet, store ark.
l Parameters
Application
l Optional Accessories:
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø With internal EM card reader;
Ø RF frequency: 125KHz(EM);
Ø Standard DC12V power supply;
Ø With standard Wiegand 26bit output (can set as other Wiegand format);
Ø With voice and light indicating work state, OC output;
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 5 seconds automatically;
Ø It's equipped with mechanical lock core and key;
Ø Support many modes of opening doors such as by reading RFID card (EM card) or by mechanical key;
Ø Suitable for door access controller, able to integrate with access controller to make whole access control system;
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: all kinds of cabinet, store ark.
l Parameters
| Type | RV900LC-R20EM | RV900LC-R20IC | RV900LC-R21EM | RV900LC-R21IC |
| RFID Card | EM | Mifare 1/cpu | EM | Mifare 1/cpu |
| Effective Distance | 40-80mm | 10-40mm | 40-80mm | 10-40mm |
| RF Frequency | 125KHz | 13.56MHz | 125KHz | 13.56MHz |
| Communication Output | Standard Wiegand 26bit interface (w32/w34/w44 optional) | RS485 | ||
| Transmission Distance | 100－120m | 1200m | ||
| Main Material | Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod; | |||
| Color | Black | |||
| Surface Treatment | Polish/ Passivation / Powder spraying | |||
| Surge Parameters | The power cord common mode 1 kV, differential mode 2 kV, signal lines common mode 1 kV | |||
| Lightning Protection Level | power supply prevents thunder: dc power mouth meet surge test level of the differential mode 1 kV, common mode 2 kV (criterion B) | |||
| Waterproof Level | IP20 | |||
| Operating Temp | -20℃~60℃ | |||
| Suitable Humidity | 5%~90%(non-condensing) | |||
| Working Voltage | DC12V±10% | |||
| Consumption Power | 12W MAX | |||

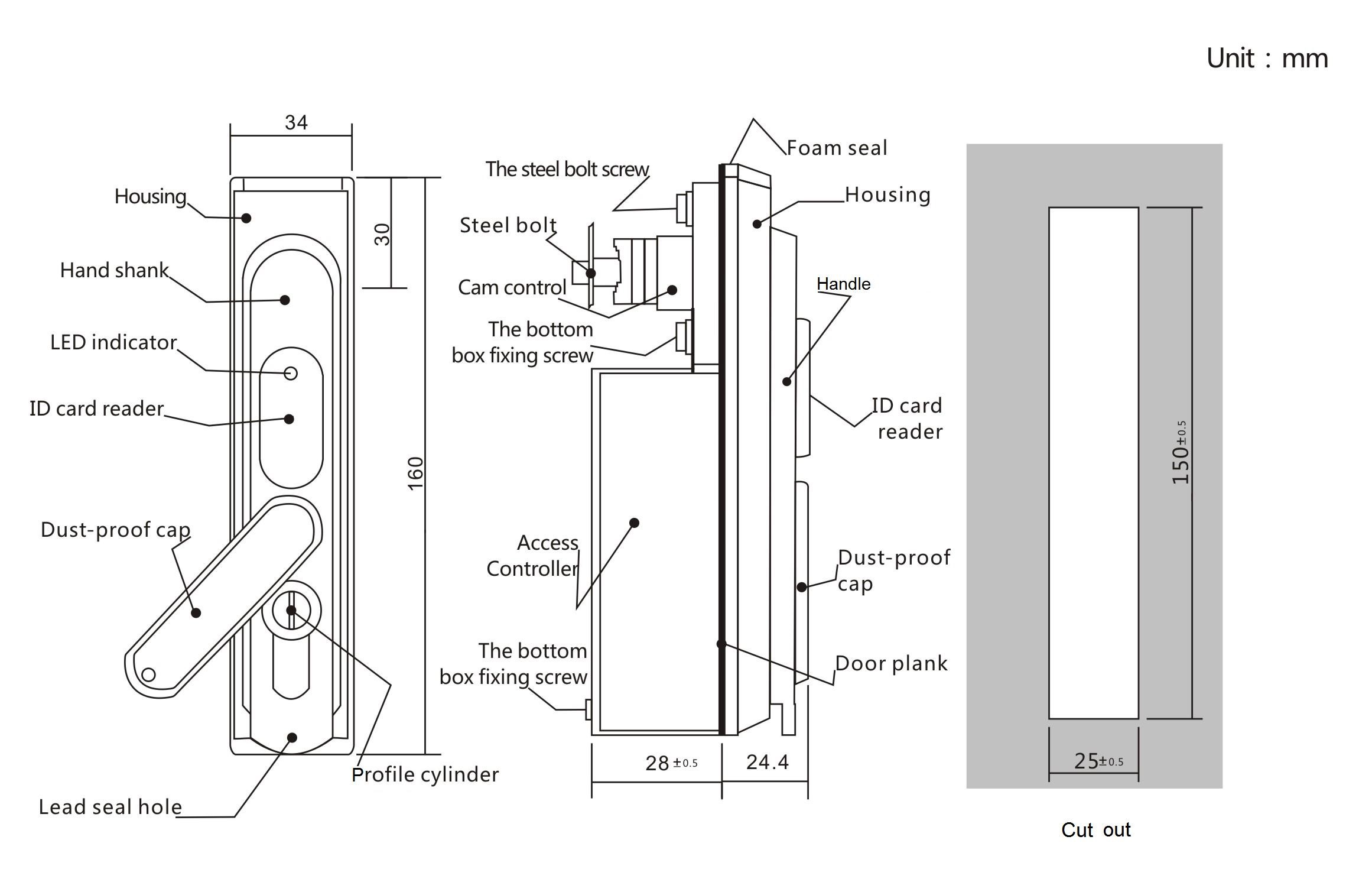

| Size (mm) | 160(W) x34(D) x53.3(H) | |||
