waterproof EM Card Reader
- ModelRV500-R01
- Type
- Other
RV500-R01 is a waterproof model reader, especially for outdoor place and waterproof level is IP66. In order to adapt to the outdoor bad weather, this product has the design of the lightning protection and anti-interference . Performance is m
l Features:
RV500-R01 is a waterproof model reader, especially for outdoor place and waterproof level is IP66. In order to adapt to the outdoor bad weather, this product has the design of the lightning protection and anti-interference . Performance is more stable. It also has the following features:
Ø All the soil is enclosed design, waterproof properties is higher;
Ø bring their own sound and light instructions and is convenient for user to make sure work statement;
Ø Exterior is long and narrow and are suitable to install in a narrow door ark and outdoor ark;
Ø Power supply: DC12V, power consumption less than 1W;
Ø Working frequency: 125 KHz (support EM card);
Ø Effective distance: 40~150mm (depending on card quality);
Ø Transmission distance: less than 200m;
Ø Working environment: -20℃ to 55℃; Relative humidity 5% to 95%;
Ø Communication output: Standard Wiegand interface (RS232 optional);
Ø Water-proof function, applicable to outdoor application, mostly in the gates of communities;
Ø Application: widely used in electric power unmanned substations, outdoor base station, machine room, warehouse, and other important place
l Parameters:
l Application
RV500-R01 is a waterproof model reader, especially for outdoor place and waterproof level is IP66. In order to adapt to the outdoor bad weather, this product has the design of the lightning protection and anti-interference . Performance is more stable. It also has the following features:
Ø All the soil is enclosed design, waterproof properties is higher;
Ø bring their own sound and light instructions and is convenient for user to make sure work statement;
Ø Exterior is long and narrow and are suitable to install in a narrow door ark and outdoor ark;
Ø Power supply: DC12V, power consumption less than 1W;
Ø Working frequency: 125 KHz (support EM card);
Ø Effective distance: 40~150mm (depending on card quality);
Ø Transmission distance: less than 200m;
Ø Working environment: -20℃ to 55℃; Relative humidity 5% to 95%;
Ø Communication output: Standard Wiegand interface (RS232 optional);
Ø Water-proof function, applicable to outdoor application, mostly in the gates of communities;
Ø Application: widely used in electric power unmanned substations, outdoor base station, machine room, warehouse, and other important place
l Parameters:
| Model | RV500-R01 |
| Main Material | ABS |
| Color | Black, white and yellow |
| Surface Treatment | Spray paint |
| Working Frequency | 125 KHz (support EM card) |
| Effective Distance | 40~150mm (depending on card quality) |
| Transmission Distance | Less than 200m |
| EMC/EMI |
Rapid pulse group of resistance to flexibility ±4kV, 9kHz, power and all input / output port; Noise immunity ± 4 kV, power and all input/output port; Electrostatic put the circuit reactance flexibility ± 6 kV contact discharge, ± 8 kV air discharge, all exposed technology compo nents and terminals |
| Communication output | Wiegand26/32/34/44 i |
| Operating Temp | -20℃~60℃ |
| Suitable Humidity | 5%~95%(non-condensing) |
| Working Voltage | DC12V±10% |
| Consumption Power | 1W MAX |
| Waterproof Level | IP66 |
| Size (mm) | L112×W44×H18 |
| weight | 0.21kg |

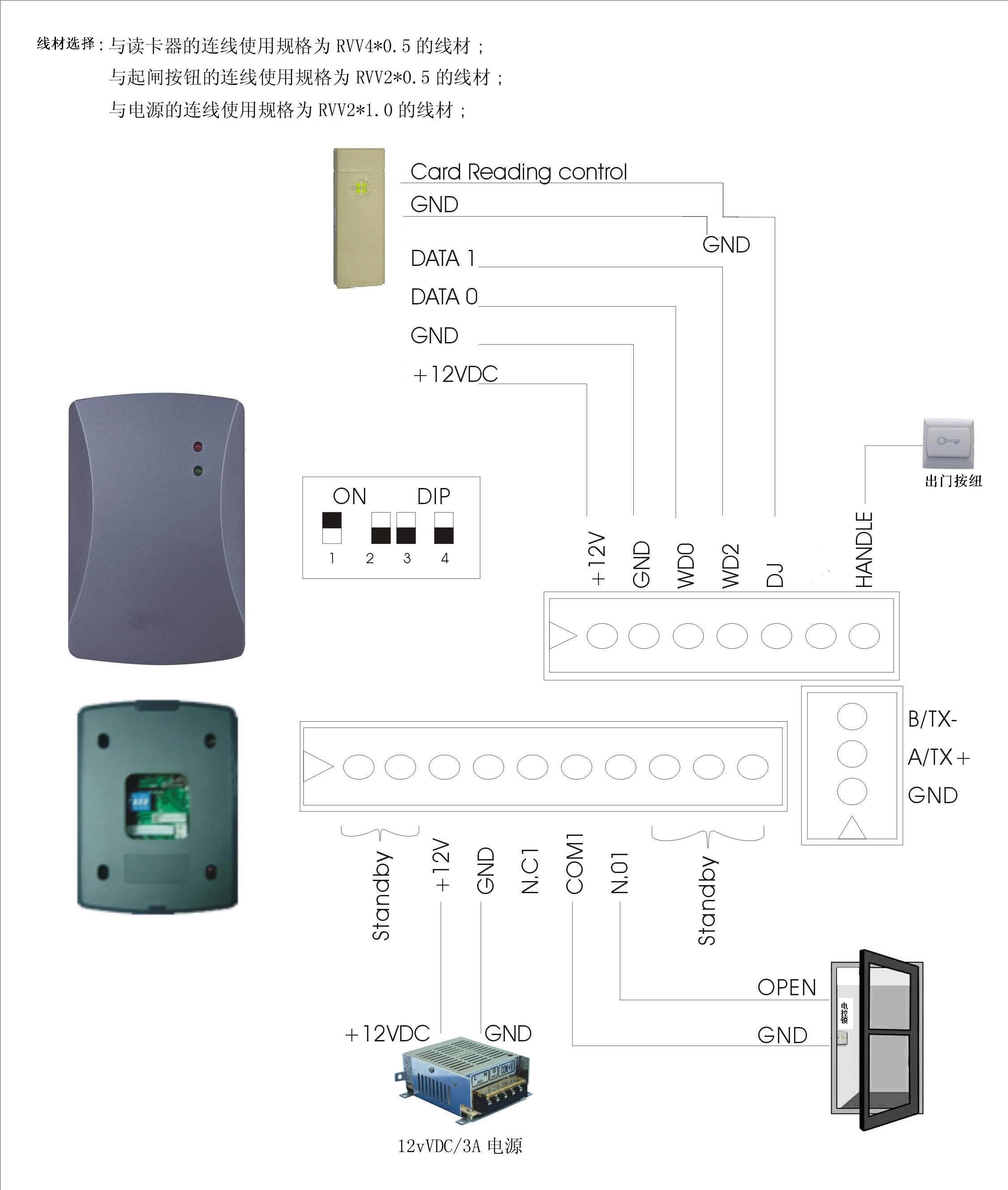

l Application
